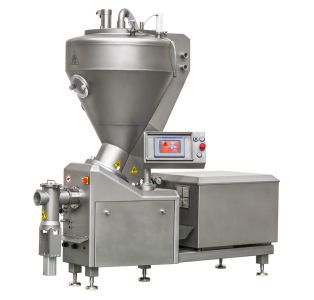

Specially designed for small and medium-sized stuffing lines, the system ensures continuous vacuum stuffing of meat pieces without destroying their morphology. The TWINVAC CLASSIC meat stuffing machine allows for incorporating into this type of line the features offered by the TWINVAC range of stuffing machines: continuous vacuum stuffing of large pieces of meat without destroying their morphology, obtaining a final product of better quality, with excellent texture, without air pockets and without risks of bacteriological contamination. Very suitable for stuffing whole muscle cooked meat products, it can work, fully automatically, directly coupled to standard continuous clippers that can be fitted to the diameter of the outlet tube, up to 100 mm, or coupled to fine dosing accessories and/or accessories for filling bags and molds.
MAIN FEATURES:
- Pneumatic loadinging valve.
- Hydraulic drive independent from the meat circuit.
- Ergonomic design.
- Without bottlenecks, displacements or rotations.
- Very easy access to all components of the machine for maintenance.
- Maximum easiness of cleaning with incredible time savings in assembly and disassembly.
- Maintenance assistant.
- Alarm detection.
- Dosing can be adjusted independently or by external signal.
- Automatic vacuum hopper feed with infrared photocell meat level detector.
- Cutting guillotine to facilitate the stuffing of meats with a high content of nerves and tendons.
- Controlled by a programmable logic controller (PLC) and touch screen.
- Adaptable to standard continuous clippers.
- Accessories available for precision dosing, bag filling and molds.
PLUS FEATURES: MODEL TWINVAC PC-5 PLUS * Higher power and stuffing pressure, allowing also for stuffing through small diameter horns and tougher meats. * The lower total height and the ergonomic design improve the efficiency of the assembling and disassembling operations, and also of the cleaning and sanitation procedures. * New system for the stuffing cylinders position detection, improving even more the dosing precision. * Optimized hygienic design, with all components easily accessible for visual inspection, including the stuffing cylinders. * New software offering a clear and friendly interface with more regulations possibilities.
MODELS:
TWINVAC PC-2
TWINVAC PC-5 PLUS
